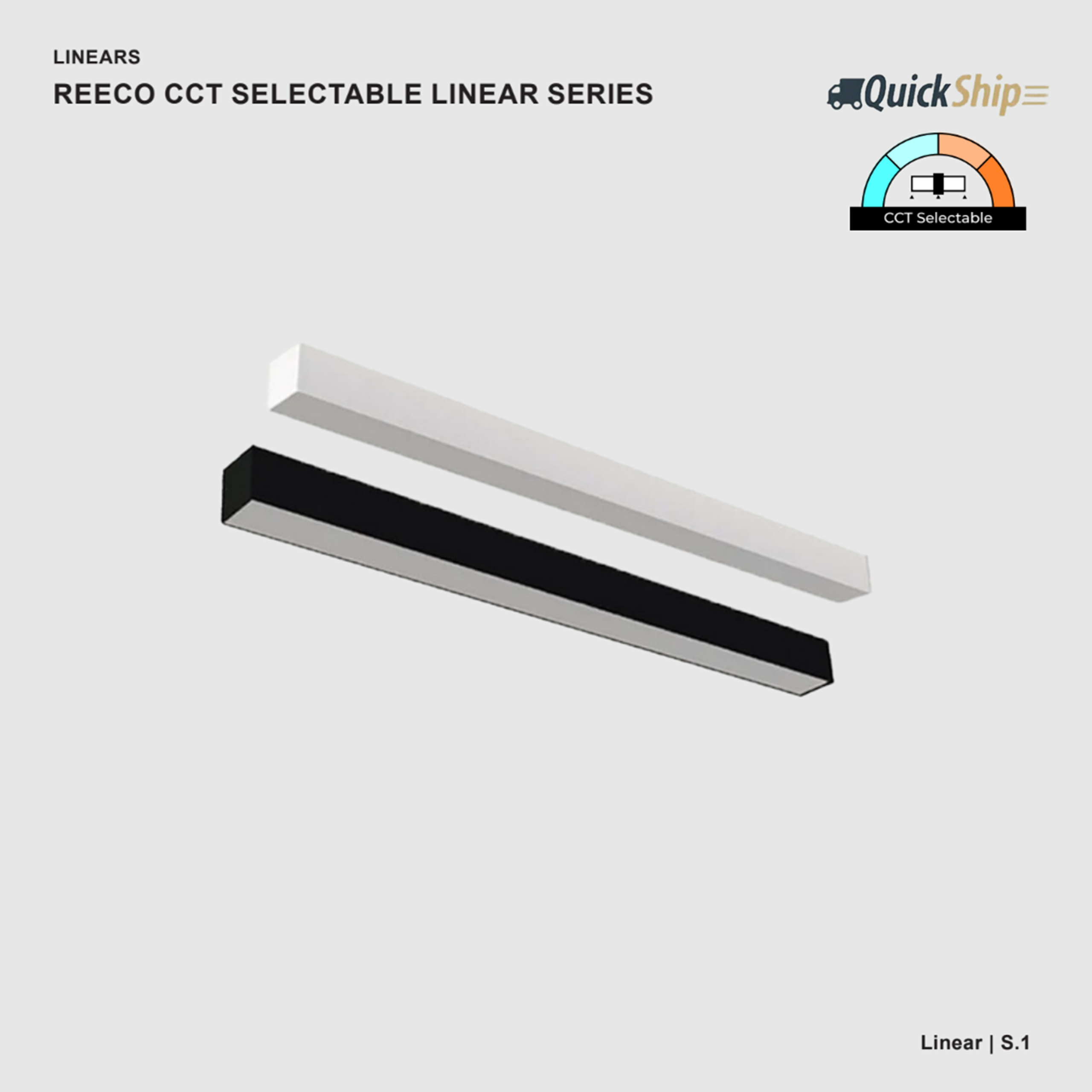

Reeco Linear
The Reeco linear CCT Selectable LED series offers Premium Light diffusion over a light-weight impact resistant opal polycarbonate lens with different mounting options.
This ultra-efficient versatile LED linear fixture can meet the challenges of restaurant, retail, industrial, warehousing and task lighting applications.
Standard colours are black and white.
Seamless, continuous run connections. All connectors are lit (down only)
It can create a functional yet relaxing atmosphere and provide an even wash of light within a space. Low profile design optimizes shipping, storage, and handling. It comes in two different Luminous ways with Down (100%), and Up/Down (30%/70%).
It is CCT Selectable 3000K 3500K 4000K and 5000K. Reeco is available in various sizes / wattages 2'(20W), 4'(40W), and 8'(80W) with an efficacy of 110 Lumens / watt.
Custom lengths and wattages are available. Please consult factory.
Reeco also offfers a specular aluminum reflector as an option.
Features
IP20 rated.
Mounting options
Recessed (trim and trimless), suspended, wall and surface mounting options available. Continuous run connectors are included.
Composition
L Corners
System Parts & Accessories
CANOPY COVER WITH 5ft CABLE KIT
LN-RE-CK
SPECTACULAR ALUMINUM REFLECTOR
LN-RE-AR
MUD FLANGE
LN-RE-MF
X CONNECTOR
LN-RE-XCON
T CONNECTOR
LN-RE-TCON
REGULAR L CORNER
LN-RE-RLC
OUTSIDE L CORNER
LN-RE-OLC
INSIDE L CORNER
LN-RE-ILC
Quick Summary
• Wattage: 20W, 40W, 80W
• Length: 2ft, 4ft, 8ft
• Lumen : 2200lm, 4400lm, 8800lm
• CCT: 3000K 3500K 4000K 5000K Selectable
• CRI: Ra>80
• Luminous Way: Down (100%), Up/Down (30% / 70%)
• Voltage: 120-347V
• Dimming: 0-10V
• Mounting: Surface, Suspended, Wall, Recessed/Trim, Recessed/Trimless
• Finish: White (Standard) Black, Grey
• Certification: CE and cUL
• Warranty: 5 Years
Installation Videos
Downloads
- IES Files
- Data Sheet
- Warranty Statement
- Installation Guide
Mounting options
Recessed (trim and trimless), suspended, wall, and surface mounting options available.
RT-RECESSED
Trim version

RTL-RECESSED
Trimless version

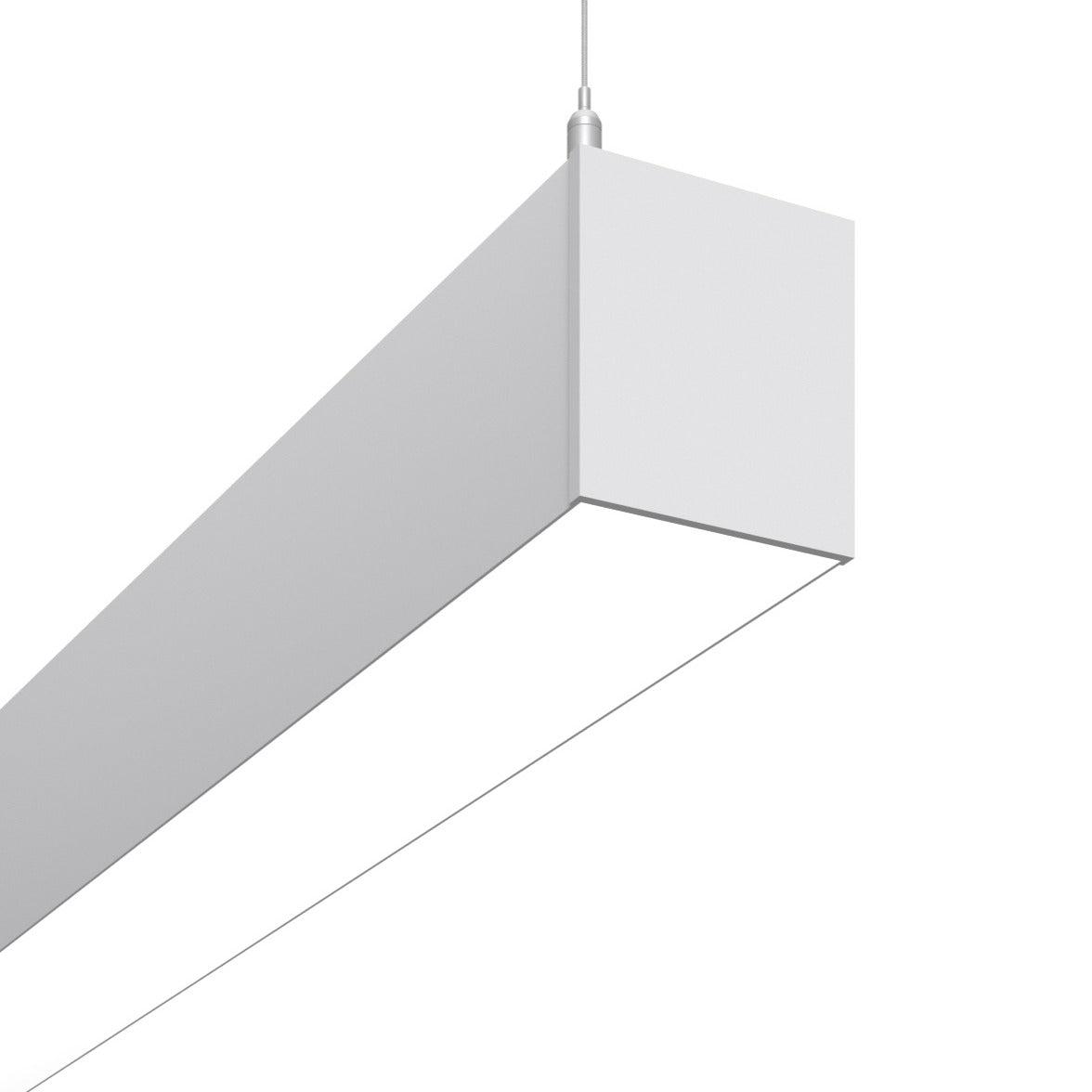

SP-SUSPENDED

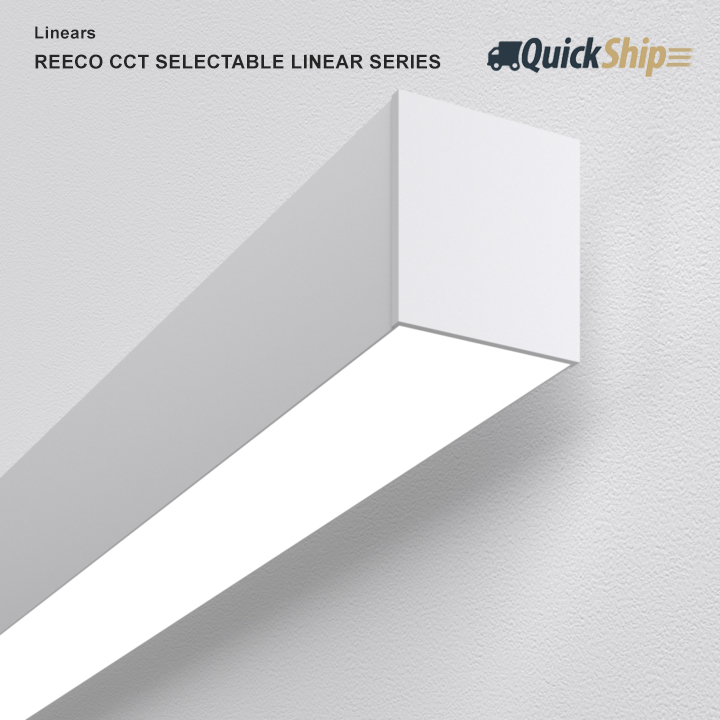

W-WALL

SF-SURFACE

COMPOSITION

L CORNERS

SYSTEM PARTS & ACCESSORIES

CANOPY COVER WITH
5ft CABLE KIT
LN-RE-CK

SPECULAR ALUMINUM
REFLECTOR
LN-RE-AR

MUD FLANGE
LN-RE-MF

X CONNECTOR
LN-RE-XCON

T CONNECTOR
LN-RE-TCON

REGULAR L CORNER
LN-RE-RLC

OUTSIDE L CORNER
LN-RE-OLC

INSIDE L CORNER
