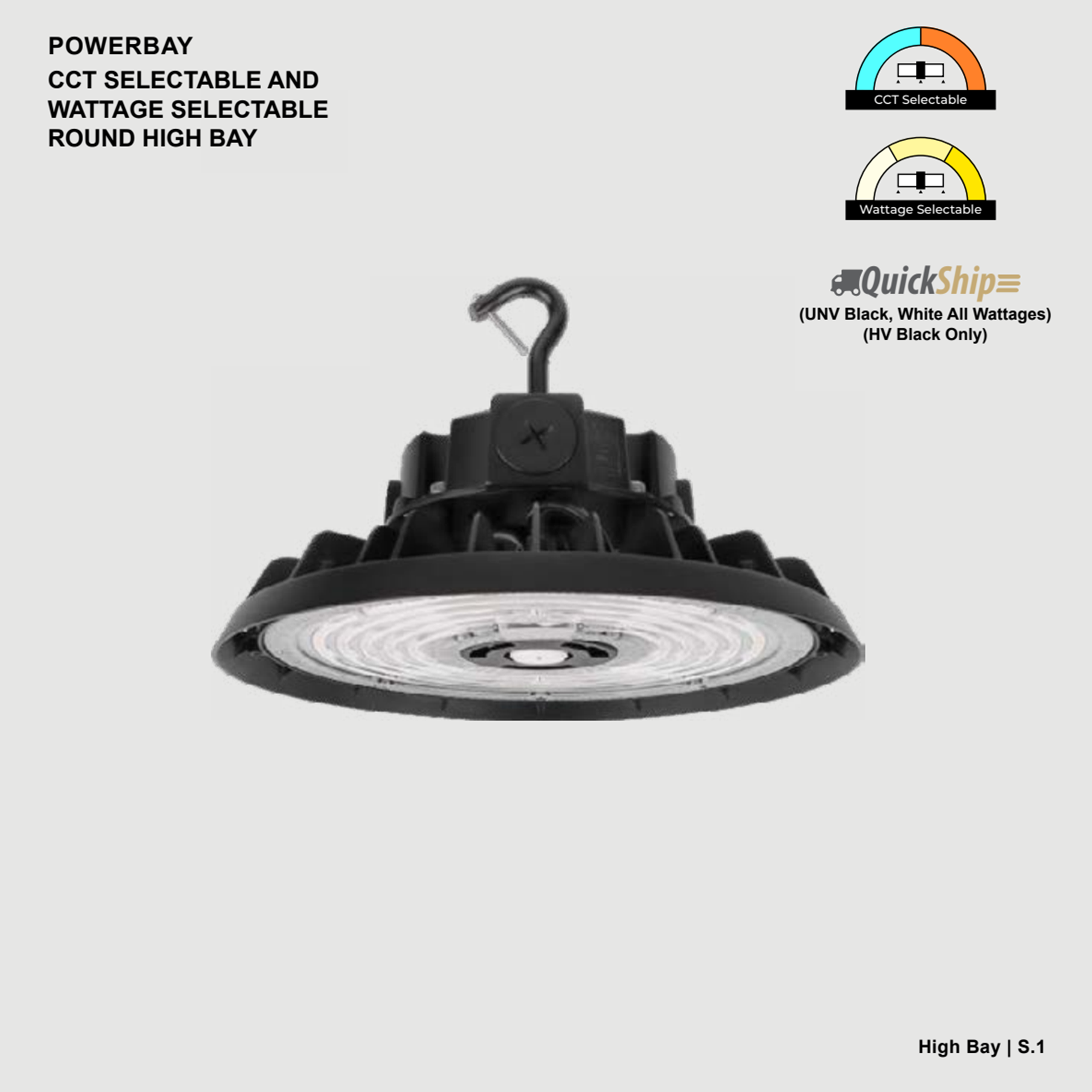

Powerbay
The Powerbay is a CCT & WATTAGE SELECTABLE LED round high bay that is suitable for commercial and industrial applications such as warehouses and storage, industrial facilities, retail centers, manufacturing, sports facilities and gymnasiums. It provides 150 LM/W light efficacy. It is occupancy sensor ready (It features a built-in occupancy sensor socket.)
Caractéristiques
Quality die-casting aluminum housing, clear polycarbonate lens and heat sink for added durability. Available in three sizes, the Powerbay with the ability to switch lumens and adjust CCT in one fixture, making it versatile enough to handle countless applications.
IP65 Rated
IK09
Beam Angle: 100° (Standard)
Built-in Occupancy Sensor Socket (Sensor Optional)
Emergency battery backup is available
NEMA 4X Rated
Résumé rapide
• Wattages: 80W/120W/150W |150W/200W/240W | 200W/240W/320W
• Lumen Output: (150WS) - 22500lm, (240WS) - 36000lm, (320WS) - 48000lm
• Mounting: Eye Hook (Standard), Ceiling Bracket
• Optics: 100D
• CCT: Selectable 4000K/5000K
• CRI: 80+
• Voltage: 120-277V (UNV), 277-480V (HV), 120-347V (CUNV)
• Dimming: 0-10V Dimming
• Finish: Black (Standard), White (Optional)
• IP Rating: IP65
• Certification: DLC Premium, UL listed
• Warranty: 5 Years
Téléchargements
- Fiche technique
- Fichiers IES
- Guide d'installation
- Déclaration de garantie
