Alpine Ski Hill Floodlight

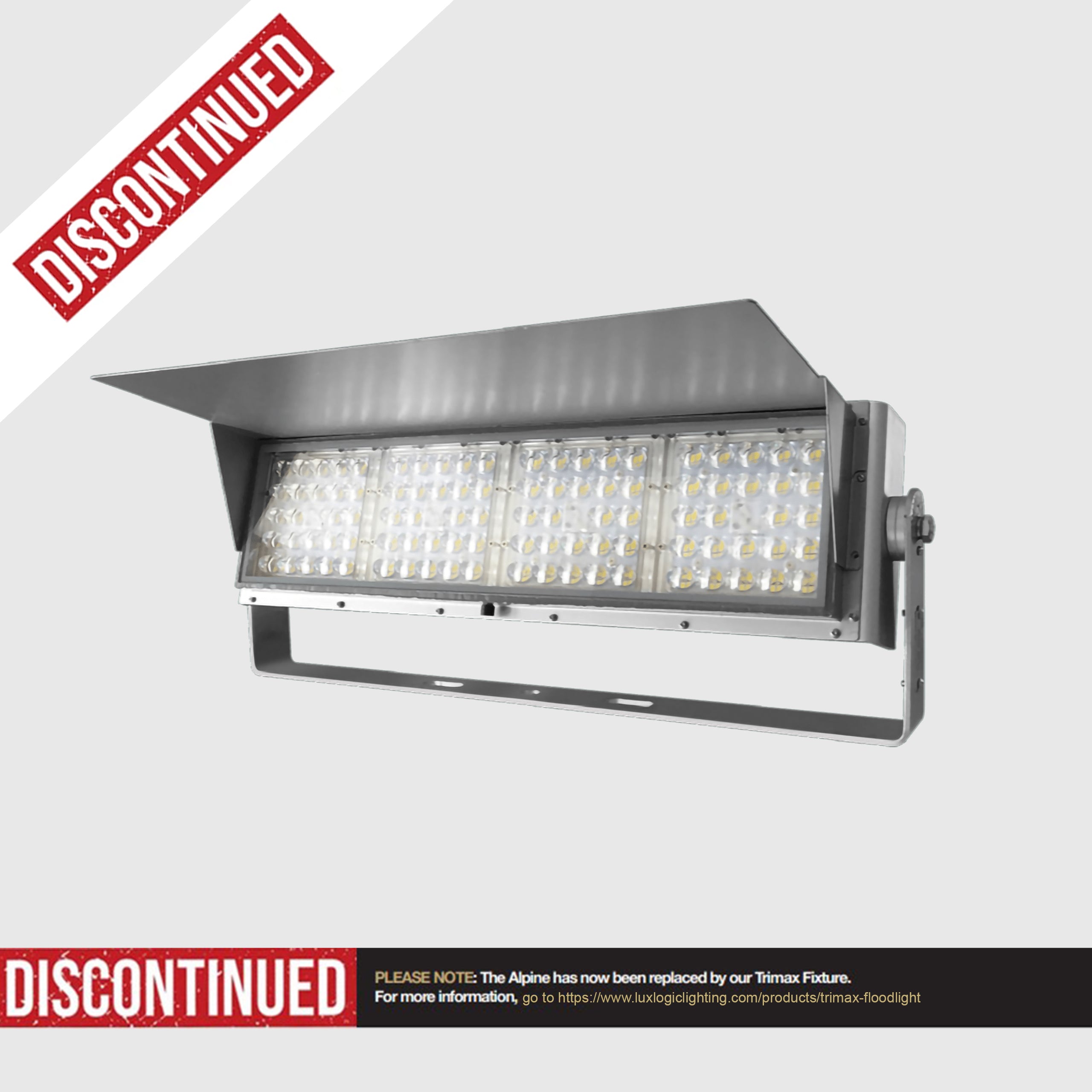

PLEASE NOTE: The Alpine has now been replaced by our Trimax Fixture. For more information, click here

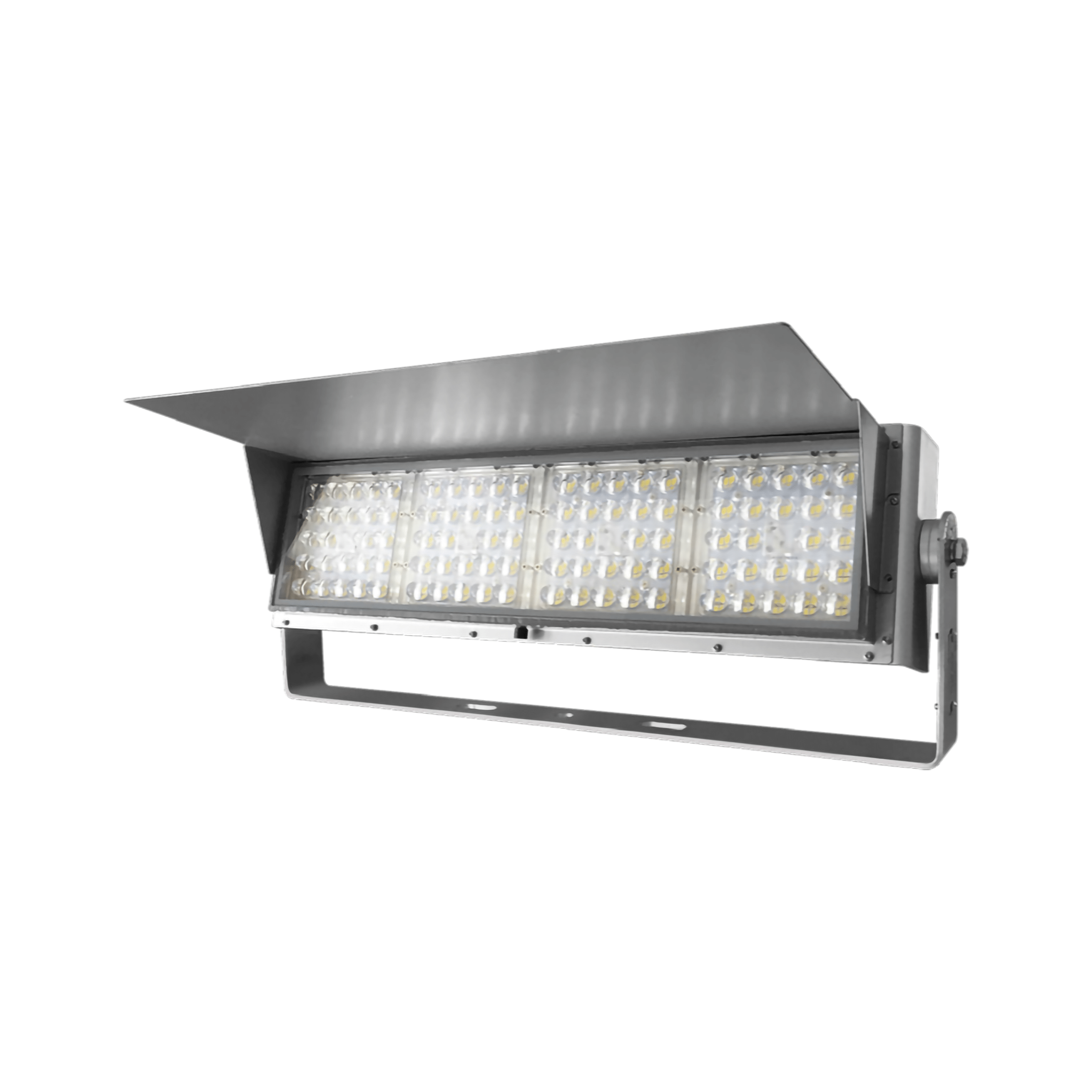

The Alpine series is a high performance low profile LED flood light designed for a wide variety of applications and mounting heights. Multiple optics and color temperature options make the Alpine ideal for exterior area lighting, retail, sports fields and ski hills.
Extruded aluminum heat sinks with driver thermally isolated from the LEDs.
Edge-to-edge high impact glass lens with no bezel prevents dirt and ice build-up on the optics.
Lumileds or Cree LED chips. Optics can deliver light up to 7 times the mounting height uniformly from the pole to the target. Low profile, wide optic design ensures minimal exposure to the elements. Visor protects the optics and redirects potentially wasted light back to the target plane, minimizing sky glow and blocking unwanted glare. Unique optic venting system allows air to flow freely in and out of the optics while blocking water, condensation and contaminants. Optics stay clean, efficient and long lasting.
Moons driver is rear mounted and easily accessible for maintenance. 100-277V or 347 480V operation. 0-10V dimming standard. Suitable for operation in -40ºC to +50ºC (-40ºF to 122ºF) sambient environments.
The Ultimate Ski Hill Flood Light
LEDs have swept the conventional lighting marketplace
for a variety of reasons, most notably their extended lifespans, reduced energy consumption and lower maintenance requirements. More and more facility
managers are looking to upgrade their lighting systems
This uniquely designed fixture has light
distributions that significantly enhance
light levels and uniformity on ski slopes.
The traditional HID flood lights create
uneven dark spots across the ski slope.
The Alpine flood light produces up
to 48,000 lumens. With more than 110 lumens per Watt, it is far more
efficient than any high-intensity
discharge (HID) fixtures. With
specially designed optics for ski hills, the Alpine can reduce energy costs by up to 70%.

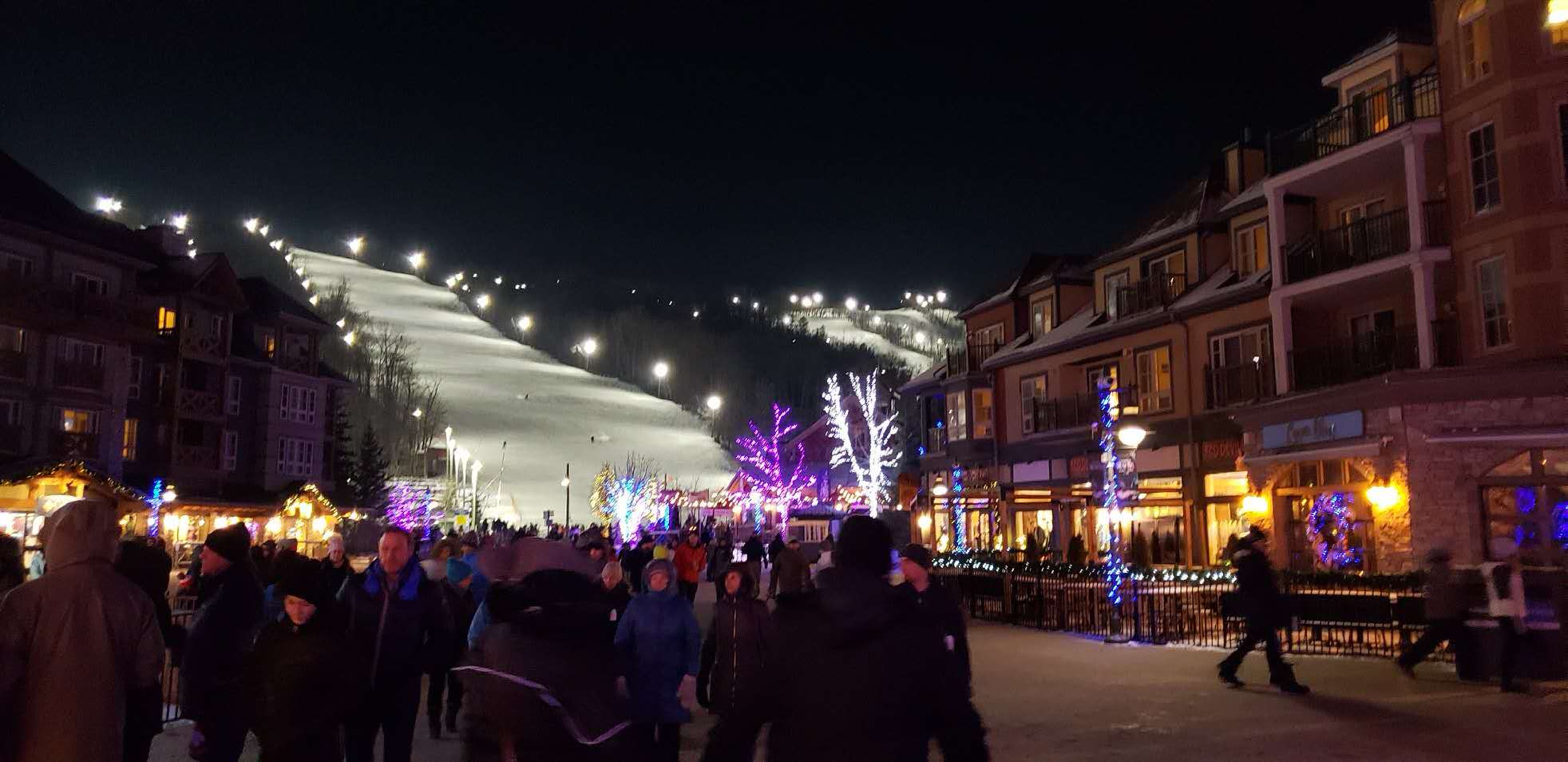

Night Ski At Blue Mountain
• Wattage: 200W
• Lumens: (200W) - 24000lm
• Chip: Lumileds/Cree
• CCT: 3000K, 4000K, 5000K
• CRI: Ra>70+ (STANDARD) , Ra>80+
• Optics: 6X3D
• Voltage: 120-277V (UNV), 347-480V (CHV)
• Dimming: 0-10V
• Mounting: Yoke
• Finish: Grey, Black
• IP rating: Wet Location / IP65
• EPA: 1.27
• Certification cETLus, DLC
• Warranty: 6 Years
